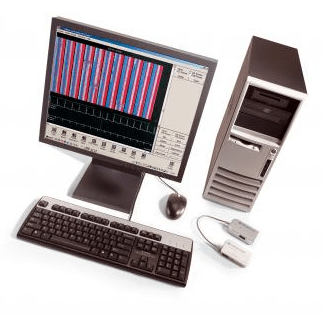

MARS® PC Holter Monitoring & Review System
Designed for hospitals, clinics and physicians' offices, MARS® PC puts advanced Holter monitoring and review capabilities within your reach. A complete turnkey solution on a standard PC computer platform makes MARS® PC a highly cost-effective choice. In addition, complete system scalability lets you purchase those MARS® PC software components that fit your present needs and budget, then add more software modules to your system's capabilities as your needs evolve.
Diagnostic Capabilities
Acquire…
MARS® PC Holter Monitoring & Review System
Designed for hospitals, clinics and physicians' offices, MARS® PC puts advanced Holter monitoring and review capabilities within your reach. A complete turnkey solution on a standard PC computer platform makes MARS® PC a highly cost-effective choice. In addition, complete system scalability lets you purchase those MARS® PC software components that fit your present needs and budget, then add more software modules to your system's capabilities as your needs evolve.
Diagnostic Capabilities
Acquire analyzed data for instant review - increase the speed of test results
Unprecedented Speed and Quality of Care
Identify onsets and offsets of difficult-to-detect afibrillation and aflutter and quantify each event
Powerful, Decision-making Tool
Gives you the information you need to help streamline your processes and help improve the quality of patient care
Workstation Specifications:
Processor Type: Intel® Pentium®III
Processor Speed: 800 MHz
Front Side Bus: 133 MHz
Cache Type: Integrated
Cache Size: 256 KB
Chipset: Intel® 815E
Standard RAM: 128 MB
Maximum RAM: 512 MB
Memory Type: SDRAM
Disk Controller: SMART Ultra ATA/100/66/33
Hard Drive Type: SMART III Ultra ATA/66 with DPS
Hard Drive Capacity: 15 GB
Rotational Speed: 7200 RPM
Diskette Drive Capacity: 1.44 MB diskette drive
Optical Storage: 48X max CD-ROM
Audio Type: Integrated Intel® Audio with Premium Internal Speaker
Graphics Type: Intel® 3D Direct AGP (embedded)
Graphics Memory: 4 MB of display cache plus dynamic main memory allocation
Operating System: Microsoft NT 4.0, SP6
Slots PCI Total/Available: 3/3
Bays Internal Total/Available: 1/0
Bays External Total/Available: 2/0
Network Interface Controller: Integrated Intel® PRO/100 VM Network Connection
Serial Port: 2
Parallel: 1
USB: 2
Keyboard: 1
Pointing Device: 1
Keyboard Type: Easy Access Keyboard
Mouse Type: Compaq Scroll Mouse
Form Factor: Desktop Small Form Factor
Height: 9.65 cm (3.8 in.)
Depth: 37.0 cm (14.6 in.)
Width: 31.75 cm (12.5 in.)
Monitor Specifications:
21” (19.8 inch Viewable)
Height: 505 mm (19.9 in)
Width: 498 mm (19.6 in)
Depth: 475 mm (18.7 in)
Weight: 31 kg (68 lb, 5 oz.)
Power: 100 to 240 V, 50–60 Hz, 2.0–1.0A, 160 W Max, 1600 x 1200 display resolution
17” (16 inch Viewable)
Height: 414 mm (16.3 in)
Width: 404 mm (15.9 in)
Depth: 419 mm (16.5 in)
Weight: 20 kg (44.1 lb)
Power: 100 to 240 V, 50–60 Hz, 130 W (maximum), 1600 x 1200 display resolution (maximum)
Power Requirements:
275 Watts, 120/230 Volts, Switchable, 50/60 Hz
Environmental Specifications:
Operating Temperature: 50° to 95°F (10° to 35°C)
Storage Temperature: -4° to 140°F (-20° to 60°C)
Relative Humidity 20% to 80% non-condensing
Regulatory Certification:
UL Listed
CSA Certified
TUV Certified
EN 60950 (UL 1950)
Warranty:
One year limited warranty
