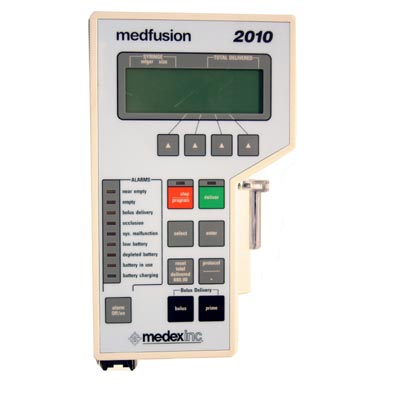

Medex Medfusion 2010 Ambulatory Syringe Pump

Specifications

Overall Size: 4.5"W x 3" H x 7.5"L

Weight: 2.5 pounds

Accuracy: ±3% (excluding syringe variations)

• Infusion Modes:
• Body Weight modes: mcg/kg/min, mcg/kg/hr, mg/kg/min, mg/kg/hr
• Mass Modes: mg/hr
• Continuous Modes: ml/hr
• Volume/Time Mode: Dose Volume/Delivery Time

Flow Rate: 0.01 - 378.0 ml/hr - dependent upon syringe size selected

Bolus Rate: Up to 378.0 ml/hr - dependent upon syringe size selected

• Syringe Selection:
• Becton-Dickinson (B-D)® 1, 3, 5, 10, 20, 30, 60 ml
• Monoject® 1, 3, 6, 12, 20, 35, 60 ml
• Terumo® 1, 3, 5, 10, 20, 30, 60 ml

Syringe Fill Volume: All syringe sizes will fill to maximum stated volumes

Power: AC Adapter; DC Internal Rechargeable Batteries

Battery Capacity: 16 hour charge will operate the pump for approximately 10 hours at 5.0 ml/hr with a 60 ml syringe

Recharge Time: No Longer than 16 Hours

• Alarms:
• - Near Empty
• - Empty
• - Occlusion
• - System Malfunction
• - Low/Depleted Battery
• - Load Syringe Plunger
• - Check Clutch
• - Syringe Pops Out
• - Invalid Size
• - Invalid Number
• - Alarm Audio: Soft or Loud
• - Alarm Temporary Delay: 2 or 60 minutes
