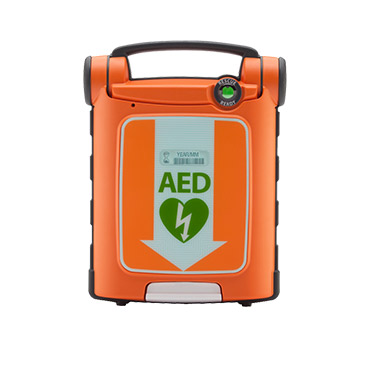

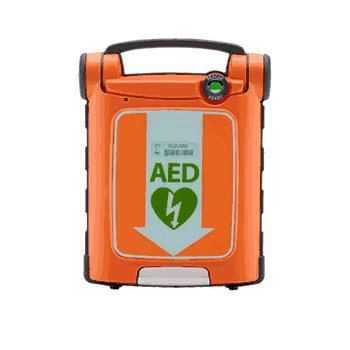

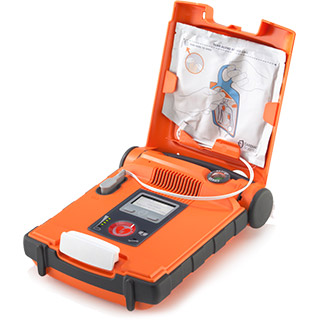

Cardiac Science Powerheart G5 AED Semi-Automatic
The Powerheart G5 Semi-Auto is ready to respond and knows how to perform when every second counts during a sudden cardiac arrest emergency.
- DEFIBRILLATOR
- Operations: Semi-automatic
- Waveform: STAR biphasic truncated exponential
- Therapy range: (J) 95J to 354J (adult)
- Fast shock feature: Able to deliver a shock after the end of a CPR cycle in 10 seconds or less
- Voice prompts: RescueCoach prompts provide user-paced instruction Text screen Displays rescue prompts and critical rescue information
- Audible alerts: Voice prompt, system alert
- Synchronized shock: Built-in automatic synchronization feature
- Pacemaker pulse detection: Yes
- Synchronized shock: Built-in automatic synchronization feature
- Pacemaker pulse detection: Yes
- Pediatric capability: Therapy range (VE) 22J to 82J, pediatric prompts
- Dual Language Latin American Spanish or French Canadian (optional)*
- Customizable: Voice prompt, CPR settings, and shock protocols via AED Manager
- CPR: Metronome for CPR compression rate
- Visible indicators: Rescue Ready, battery, service, and pad status
- Warranty: 8 years
- PHYSICAL/ENVIRONMENTAL
- Dimensions (H × W × D): 3.4 in × 9.0 in × 11.8 in (9 cm × 23 cm × 30 cm)
- Weight: 5.7 lbs (2.6 kg), including battery and pads
- Dust/water resistance: IP55 (IEC 60529)
- Operating temperature: 32 °F to +122 °F (0 °C to 50 °C)
- Altitude: –1,253 ft (–382 m) to (15,073 ft) 4,594 m
- Drop: MIL-STD-810G, 516.6 (Procedure IV) for 1.22 m drop
- Shocks: MIL-STD-810G, 516.6 (Procedure 1)
- Vibration (sine and random): MIL-STD-810G, 514.6 (Procedure 1, Cat 24)
- EMI (radiated/immunity): IEC 60601-2-4
- PADS Intellisense Defibrallation Pads
- Type: Disposable, non-polarized (pads can be placed in either position)
- Shelf life: 2 years
- BATTERY Intellisense Lithium Battery
- Guarantee: 4-year, full operational replacement
- Capacity: 420 shocks (typical) at 300VE
- AUTOMATIC SELF-TESTS
- Daily, weekly, and monthly: Electrical circuitry, AED software, medical grade battery and defibrillation pads (presence and function)
- Weekly: Includes partial energy charge
- Monthly: Includes full energy charge cycle
- EVENT DOCUMENTATION
- Internal memory: 90 minutes of rescue data, multiple rescue functionality
- ECG and rescue review: Viewable via AED Manager reporting and configuration software
- Communications: USB cable or USB memory stick
