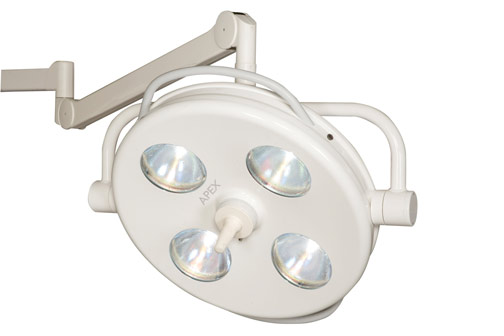

Burton Apex Major Surgery Lights

Burton Apex Major Surgery Lights
Click Image to Enlarge
Item #:


Request for more information:

*
*
*
*
*






* Indicates required field!



Burton's new Apex delivers no-drift positioning and exceptional high-intensity performance. Reliable operation, simplicity and ease of use. For optimum illumination (120,000 lux / 11,148 fc at 1 meter), the highest quality no-drift arm system, reliability and true color rendering, there is no better value than Burton's Apex. Plus, an efficient multi-bulb design eliminates the need for complicated back-up bulb systems used in single source lights.

  • Technical Specifications
  • High-intensity of 120,000 lux (11,148 fc) at 1 meter
  • 4200 K color temperature offers pure white illumination
  • High CRI (Color Rendering Index) of 95
  • 24″ (61 cm) diameter lighthead
  • Unlimited arm rotation
  • Focuses with center autoclavable handle for exceptionally smooth focus
  • Supplied with control box including on/off switch, and continuous intensity adjustment
  • Durable, aesthetic arm system that is recognized for drift-free, trouble-free operation
  • 120V model standard, 100V and 230 / 240V models available
  • Assembled in USA
  • Certifications/Approvals
  • UL 60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41
  • CAN/CSA C22.2 No. 601.1
  • CE marked
