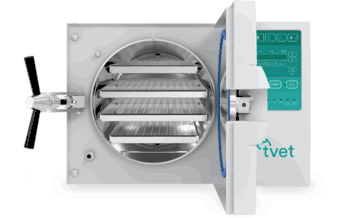

Tuttnauer TVET 10E Fully Automatic Veterinary Autoclave

Tuttnauer TVET 10E Fully Automatic Veterinary Autoclave
Click Image to Enlarge
Item #:


Request for more information:

*
*
*
*
*






* Indicates required field!



The perfect Autoclave developed exclusively for Veterinarians The tvet line fits all your sterilization needs by creating cycle parameters to accommodate double wrapped pouches. These cycles ensure sterility and efficient drying of packs and pouches, helping veterinarians meet today's challenging workloads.

A fully automatic veterinary autoclave, with one-touch simplicity.

The tvet 10E is a compact, fully automatic steam sterilizer. Once activated, it will run the entire cycle until the load is ready to be removed. This time-saving autoclave comes with a 6-gallon stainless steel chamber and a high-efficiency air pump. With closed-door active drying, your instruments will be dry in no time. The tvet 10E's brighter and easier to read panel delivers full penetration of steam and post-vacuum drying. All program parameters can be customized and stored.

4 Trays, Tray handle included

Safe-Locking Door
Easy to use with one hand, the decorative stainless steel door has a double safety mechanism

Intuitive Control
The LCD control panel gives you an easy-to-read overview of sterilization parameters and progress. Operate with a simple, intuitive menu system

Simple Drainage
A drainage valve is conveniently located at the front, allowing you to quickly and easily drain the water reservoir

Durable Chamber
Made to last, the electropolished 316L stainless steel chamber is backed by a 10-year warranty

Multi-Layered Safety
Safety features include an audiovisual monitoring system, a low water sensor and automatic shut-off at the end of all cycles

Dimensions (D x W x H) Chamber Dimensions
21.5" x 20.1" x 14.4" 10" x 19"
545mm x 510mm x 365mm 545mm x 475mm

Chamber Volume Tray Capacity
23 Liter 4 Trays
6 Gallon

Tray Dimensions Standard Cassette Capacity
16,3" x 6,7" x 0.8", 3 Full & 3 Half*
442mm x 170mm x 20mm

Voltage & Frequency Power & Current
120V 1400W
50-60Hz 12A

Shipping Weight
95 Lbs *Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”
43 kg

Standards & Directives Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and 2014/68/EU - Pressure Equipment Directive
Quality Standards
ISO 9001:2015 Quality Management System
ISO 13485:2016 Quality Management System - Medical Devices
ISO 14001:2015 Environmental Management System
Canadian MDR (CMDR) SOR/98-282 (2018), consolidated

Technical Standards
ANSI/AAMI ST55:2016
Directives
  • 93/42/EEC Medical Devices Directive
  • 2006/42/EC Machinery Directive
  • 2014/35/EU Low Voltage Directive
  • 2014/30/EU Electromagnetic Compatibility Directive
  • 2012/19/EU WEEE and 2011/65/EU RoHS
  • EN 61010-2-040
  • EN 554 EN 61326 EN 61326
  • Complying with MDD 93/42, PED 97/23, RoHS & WEEE Directives(IP31)
