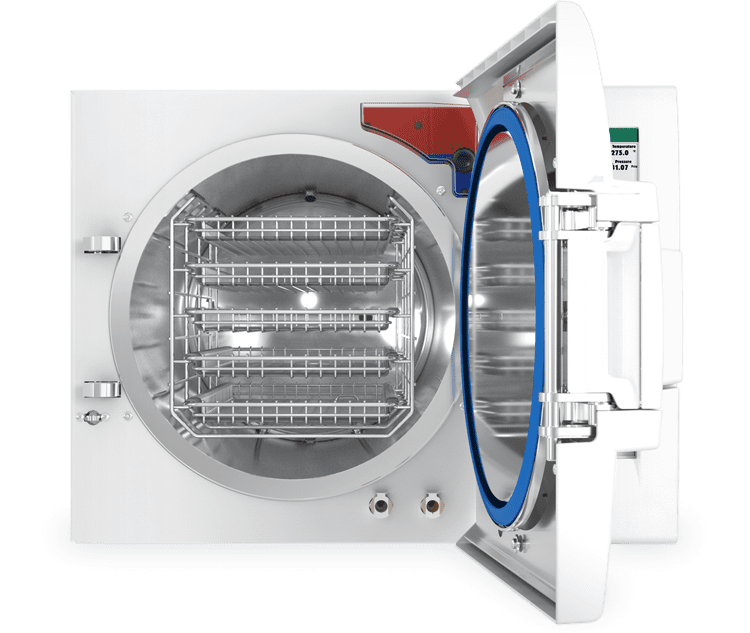

Tuttnauer TVET 11E Large Capacity Fully Automatic Veterinary Autoclave

Tuttnauer TVET 11E Large Capacity Fully Automatic Veterinary Autoclave
Click Image to Enlarge
Item #:


Request for more information:

*
*
*
*
*






* Indicates required field!



The perfect Autoclave developed exclusively for Veterinarians. The tvet line fits all your sterilization needs by creating cycle parameters to accommodate double wrapped pouches. These cycles ensure sterility and efficient drying of packs and pouches, helping veterinarians meet today's challenging workloads.

A powerful high-capacity veterinary sterilizer, designed for the modern clinic.

With its sleek design and cutting-edge technologies, this fully automatic autoclave is sure to make an impression. Once activated, it will run the entire cycle until the load is ready to be removed. The tvet 11E features an impressive 7.5-gallon stainless steel chamber and a high-efficiency air pump for quick closed-door drying. The tevet 11E's brighter and easier to read panel delivers full penetration of steam and post-vacuum drying. All program parameters can be customized and stored.

5 Trays, Tray handle included

Safe-Locking Door
Easy to use with one hand, the self-locking stainless steel door has a double safety mechanism. Open, close and lock with a gentle push

Advanced Color Display
The bright color display gives you an easy-to-read overview of parameters and real-time values. Multilingual menu system with intuitive navigation

Easy Data Transfer to USB
Transfer cycle data to your PC via USB, or wirelessly with optional remote monitoring software. Print with optional built-in printer

Durable Chamber
Made to last, the electropolished 316L stainless steel chamber is backed by a 10-year warranty

Dual Water Filling
Water filling is available both at the front and on top for maximum flexibility. A drainage valve is conveniently located at the front

Dimensions (D x W x H) Chamber Dimensions
24.8" x 20.9" x 17.3" 11" x 19.8"
630mm x 530mm x 440mm 280mm x 504mm

Chamber Volume Tray Capacity
28.5 Liter 5 Trays
7.5 Gallon

Tray Dimensions Standard Cassette Capacity
16,3" x 6,7" x 0.6", 4 Full & 4 Half* (loaded vertically)
442mm x 169mm x 16mm

Voltage & Frequency Power & Current
120V 1400W
50-60Hz 12A

Shipping Weight
126 Lbs *Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”
57 kg

Standards & Directives Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and 2014/68/EU - Pressure Equipment Directive
Quality Standards
ISO 9001:2015 Quality Management System
ISO 13485:2016 Quality Management System - Medical Devices
ISO 14001:2015 Environmental Management System
Canadian MDR (CMDR) SOR/98-282 (2018), consolidated

Technical Standards
ANSI/AAMI ST55:2016
Directives
  • 93/42/EEC Medical Devices Directive
  • 2006/42/EC Machinery Directive
  • 2014/35/EU Low Voltage Directive
  • 2014/30/EU Electromagnetic Compatibility Directive
  • 2012/19/EU WEEE and 2011/65/EU RoHS
  • EN 61010-2-040
  • EN 554 EN 61326 EN 61326
  • Complying with MDD 93/42, PED 97/23, RoHS & WEEE Directives(IP31)
