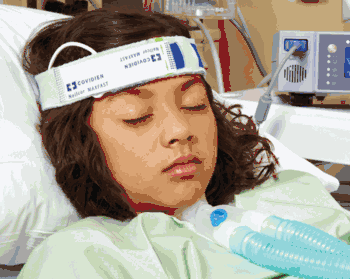

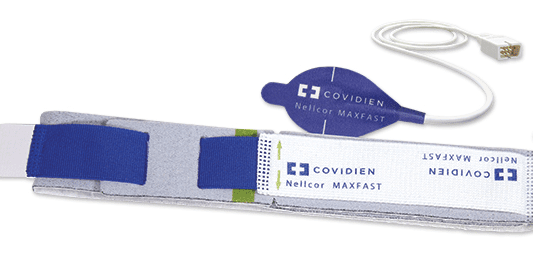

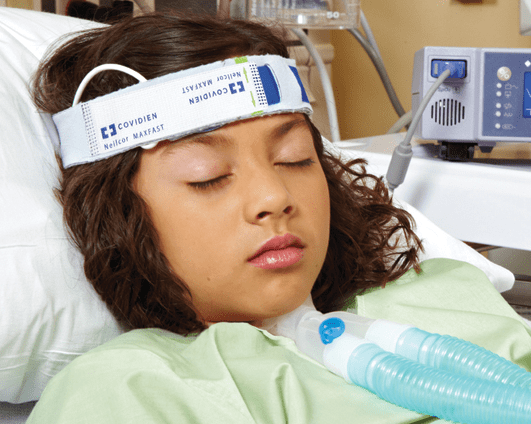

Nellcor Pediatric Forehead SpO₂ Single-Patient Use Specialty Sensor

Physical:
Dimensions: 99.6 x 36 x 102.5 mm (3.9 x 1.4 x 4.0 in.)
Weight: 210 g (8.2 oz)
Safety:
Complies with IEC 60601-1, IEC 60601-1-2, CSA C22.2#601.1-M90AMD2, ISO 9919, IEC 80601-2
Type CF applied part, defibrillator proof
SpO₂ sensors
Wavelength range: 500 to 1,000 nm
Emitted light energy: ≤ 15m W
ENVIRONMENTAL
Module
Operating temperature: 0 to 45oC (32 to 113oF)
Storage temperature: -40 to 70oC (-40 to 158oF)
Operating humidity: 95% RH max. at 40oC (104oF)
Storage humidity: 95% RH max. at 65oC (150oF)
Operating altitude: Up to 4,600 m (15,000 ft)
Storage altitude: Up to 15,300 m (50,000 ft)
Philips M1943NL is required to use the NellcorTM SpO2 module.
Single-patient use and specialty sensor accuracy1-3(adult - neonate)
Saturation (%SpO₂ ± 1 SD):
70% to 100% ± 2 digits
60% to 80% ± 3 digits
Low perfusion: 70% to 100% ± 2 digits
Pulse rate: 25 to 250 bpm ± 3 digits
Low perfusion: 25 to 250 bpm ± 3 digits
Compatibility
Compatible with Philips IntelliVue* systems†
MP40
MP50
MP60
MP70
MP80
MP90
MX800
